How to Select Waterproof High Strength Construction Sealant

2026-05-28 07:08:39

How to Select Waterproof High Strength Construction Sealant (Complete Guide)

Choosing the right Waterproof High Strength Construction Sealant is critical for long-term building performance. The correct sealant protects joints, facades, roofs, and structural components from water penetration, movement, and environmental damage. This guide explains how to select the best waterproof high strength sealant for your project, using industry-standard criteria and terminology suitable for engineers, architects, contractors, and building owners.

This SEO-focused content covers definitions, advantages, typical properties, selection criteria, testing standards, and common applications. It is written in clear, technical English and can be directly used as blog content, category page copy, or an industry resource page.

1. What Is a Waterproof High Strength Construction Sealant?

A waterproof high strength construction sealant is a specialized joint filling and sealing material designed to:

• Provide reliable water tightness under exposure to rain, standing water, or ground moisture
• Deliver high mechanical strength, including cohesive strength, adhesion, and resistance to tearing or abrasion
• Maintain elasticity or flexibility under movement, temperature changes, and structural stress
• Bond to typical construction substrates such as concrete, masonry, metals, glass, wood, and some plastics

Waterproof high strength construction sealants are used to seal:

• Expansion and control joints
• Façade and curtain wall perimeters
• Roof penetrations and flashings
• Bathrooms, wet areas, and swimming pool edges
• Basements, foundations, and retaining walls
• Industrial floors and trafficable joints

The key performance attributes are:

• Waterproofing – ability to resist water ingress and leakage
• High strength – high tensile and bond strength, tear resistance, and durability under load
• Durability – UV resistance, weathering resistance, and chemical resistance
• Movement capability – ability to accommodate expansion, contraction, and vibration

2. Why Waterproof High Strength Construction Sealants Matter

2.1 Protection Against Water Damage

Inadequate or low-quality sealants can allow water to penetrate into structural elements, causing:

• Reinforcement corrosion in concrete
• Freeze–thaw damage and spalling
• Mold growth and deterioration of finishes
• Energy loss through air and moisture infiltration

A high performance waterproof sealant forms a continuous, durable barrier that protects the building envelope and interior elements.

2.2 Structural and Mechanical Reliability

High strength sealants maintain integrity under:

• Joint movement
• Traffic loads (pedestrian or vehicular)
• Wind loads and building sway
• Mechanical impact in industrial and warehouse environments

They resist tearing or cohesion failures that can result in joint failure or leaks.

2.3 Long-Term Cost Savings

Using an appropriate waterproof high strength construction sealant reduces:

• Frequency of maintenance and resealing
• Repair costs related to water and structural damage
• Downtime of industrial facilities
• Total life-cycle cost of building ownership

3. Key Performance Criteria for Waterproof High Strength Sealants

When selecting a waterproof high strength construction sealant, consider the following core performance criteria. These criteria determine suitability for specific applications and environments.

3.1 Adhesion to Substrate

Effective waterproofing depends on strong and durable adhesion to the substrate. The sealant must bond to:

• Concrete, mortar, and masonry
• Brick and natural stone
• Steel, aluminum, and galvanised metals
• Glass and glazed units
• Wood, plywood, and fiber cement
• Some plastics (PVC, polycarbonate, etc., depending on formulation)

Proper surface preparation and compatibility testing are essential. Look for data on:

• Adhesion strength (e.g. peel adhesion, tensile adhesion)
• Adhesion after water immersion
• Adhesion after aging (heat, UV, weathering)

3.2 Tensile Strength and Elongation

High strength in sealants typically refers to a combination of tensile strength and elongation:

• Tensile strength – maximum stress the sealant can withstand when pulled before breaking
• Elongation at break – how much the sealant can stretch before failure, typically expressed as a percentage

A waterproof high strength construction sealant should combine adequate tensile strength with sufficient elongation to accommodate joint movement without cracking or losing adhesion.

3.3 Movement Capability

Most building joints experience movement due to:

• Thermal expansion and contraction
• Settlement and structural deflection
• Wind loads and vibration

Movement capability is usually given as a percentage (e.g. ±25%, ±50%). This describes how much the joint width can increase or decrease relative to the original width without compromising the sealant’s performance.

3.4 Waterproofing and Water Resistance

Waterproof high strength construction sealants must:

• Form a continuous, non-porous barrier
• Resist water penetration under static and dynamic water pressure
• Perform under intermittent or constant water exposure depending on the application

Performance can be measured using various water immersion, hydrostatic pressure, or leak-proof tests described in relevant standards.

3.5 UV, Weather, and Temperature Resistance

Outdoor applications require:

• UV resistance to prevent chalking, cracking, or loss of elasticity
• Weather resistance to withstand rain, snow, heat, and pollution
• Temperature resistance over expected service range (e.g. -40°C to +80°C or higher)

3.6 Chemical and Biological Resistance

Depending on the environment, the sealant may need resistance against:

• Detergents and cleaning agents
• Oils and fuels (car parks, garages, industrial sites)
• Weak acids and alkalis (industrial or wastewater environments)
• Microbial growth, mold, and mildew (wet rooms, food processing areas)

3.7 Durability and Service Life

A waterproof high strength construction sealant should have a design service life compatible with the building system. Typical expectations:

• 10–15 years for general sealants
• 20 years or more for façade and curtain wall joints
• Specialty formulations with extended durability in demanding conditions

3.8 Workability and Application Properties

Installers need a sealant that is practical to apply on site. Important parameters include:

• Viscosity and consistency – ease of gunning and tooling
• Skin time – time before surface begins to cure
• Cure rate – time to achieve through-cure and final properties
• Application temperature range
• Sag resistance in vertical and overhead joints

4. Major Types of Waterproof High Strength Construction Sealants

Different base chemistries provide different balances of waterproofing, strength, flexibility, and durability. Below is an overview of common types used in construction.

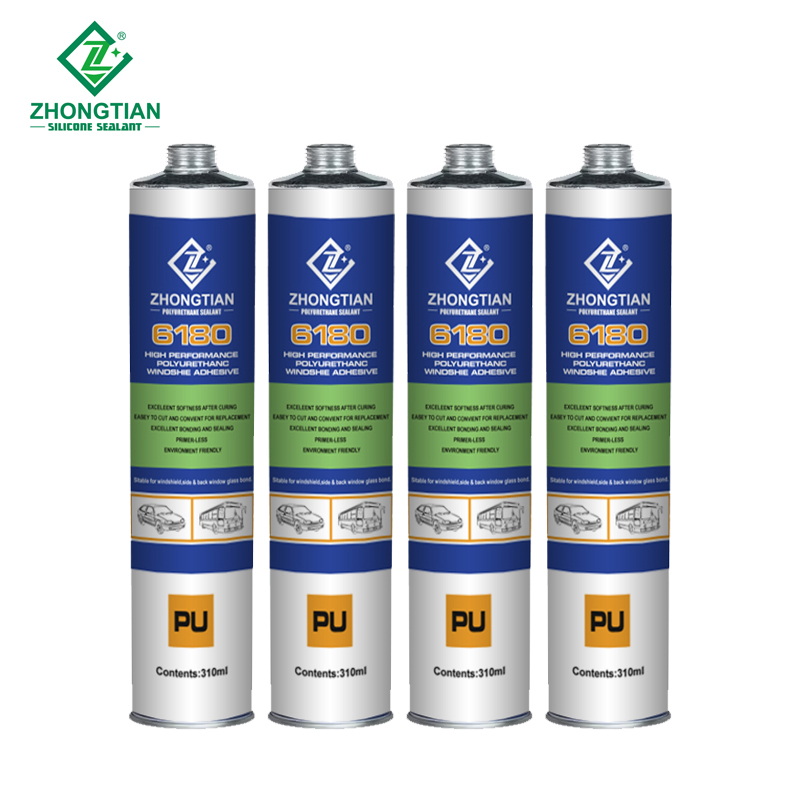

4.1 Polyurethane (PU) Sealants

Polyurethane sealants are widely used as high strength, elastic, and waterproof sealants. Typical features:

• Excellent adhesion to concrete, masonry, and many metals
• High tensile strength and tear resistance
• Good movement capability (often ±25% or more)
• Good abrasion resistance in trafficable joints
• Generally paintable

Polyurethane waterproof high strength construction sealants are common for:

• Floor joints and car parks
• Façade and masonry joints
• Basement and retaining wall joints (when properly detailed)

4.2 Silicone Sealants

Silicone sealants are highly flexible and extremely durable, especially against UV and weathering. Key features:

• Outstanding UV and weather resistance
• Very high movement capability (often ±50% or more)
• Excellent performance in curtain wall and glazing applications
• Long service life in exterior applications

Silicone-based waterproof high strength construction sealants are common for:

• Glazing and structural glazing systems
• Façade perimeters and cladding interfaces
• Exposed exterior joints requiring long-term durability

4.3 Hybrid (MS Polymer / SMP) Sealants

Hybrid sealants (often based on silyl-modified polymers) combine advantages of polyurethane and silicone:

• Good adhesion to a wide range of substrates
• Low shrinkage and good elasticity
• Often solvent-free and low VOC
• Good UV and weathering resistance
• Generally paintable and overcoatable

These hybrids are common for façade, roofing, and general construction joints where both waterproofing and strength are needed.

4.4 Epoxy and Epoxy-Modified Sealants

Epoxy sealants are generally more rigid, with very high adhesion and chemical resistance:

• High bond strength and cohesive strength
• Excellent chemical resistance
• Lower movement capability compared with polyurethane or silicone

Epoxy-based waterproof high strength sealants may be used in:

• Industrial floor joints
• Chemically aggressive environments
• Tank linings and secondary containment (depending on formulation)

4.5 Acrylic Sealants

Acrylic sealants are water-based and easy to apply, but generally lower in performance for demanding waterproof high strength applications. However, some modified acrylics are used for:

• Interior joints with limited movement
• Paintable decorator and finishing joints

For critical waterproof high strength construction sealing tasks, polyurethanes, silicones, and hybrids are more commonly specified than simple acrylics.

5. Typical Property Comparison Table

The following table compares key characteristics of major sealant chemistries used as waterproof high strength construction sealants. Actual values vary by product and formulation; use this as a general guide only.

6. Essential Technical Parameters to Review

For SEO and practical selection, it is important to understand the specific technical parameters that define a waterproof high strength construction sealant. Always refer to technical data sheets (TDS) and safety data sheets (SDS).

6.1 Mechanical and Physical Properties

6.2 Curing and Application Properties

6.3 Durability and Environmental Properties

7. How to Select the Right Waterproof High Strength Sealant: Step-by-Step

Selecting the most appropriate waterproof high strength construction sealant requires a structured process. The following step-by-step approach can be used as a checklist for designers and contractors.

7.1 Define the Joint and Application Conditions

• Location: interior or exterior, above or below grade
• Exposure: intermittent wetting, permanent immersion, splash zone, or dry
• Traffic: pedestrian, vehicular, or non-traffic
• Movement: expansion joint, control joint, static joint, or dynamic joint
• Substrates: type of materials on both sides of the joint
• Climate: temperature extremes, solar exposure, humidity, freeze–thaw cycles

7.2 Estimate Joint Movement and Choose Movement Capability

Calculate expected joint movement based on:

• Thermal expansion of materials
• Structural design and deflection
• Shrinkage of concrete and other materials

Then:

• For high movement joints (e.g. façade expansion joints), consider silicone or high-performance hybrid sealants with movement capability of ±25% to ±50% or more.
• For moderate movement joints (e.g. floor saw cuts), polyurethanes with ±25% movement capability are often suitable.
• For low movement joints, a wider range of chemistries may be appropriate, provided waterproofing is maintained.

7.3 Match Sealant Chemistry to Performance Needs

• Use silicone for:
  • High UV exposure
  • Curtain wall and glazing systems
  • High movement and long-term exterior durability
• Use polyurethane for:
  • High strength trafficable joints
  • Concrete and masonry joints
  • Basements and water-bearing joints (if product is rated for such use)
• Use hybrid/MS polymer sealants for:
  • General purpose interior/exterior waterproof joints
  • Situations needing paintability, low VOC, and good adhesion
• Use epoxy or epoxy-modified where:
  • Chemical resistance and high bond strength are critical
  • Movement is limited and joint design allows

7.4 Check Compatibility with Substrates and Adjacent Materials

• Ensure the sealant bonds to all substrates without priming where possible, or with appropriate primers as recommended.
• Verify that the sealant does not stain stone or sensitive finishes.
• Confirm compatibility with backing materials (backer rod, bond breaker tape), insulation, membranes, and coatings.
• For glazing, ensure compatibility with insulating glass unit sealants and spacer materials.

7.5 Verify Waterproof Performance

• For above-grade joints, confirm that the sealant has proven resistance to rain, wind-driven water, and water ponding.
• For below-grade and submerged joints, check if the sealant is explicitly approved for:
  • Permanent immersion
  • Hydrostatic pressure
  • Contact with potable or non-potable water (as required)
• Review any water immersion test data and certifications relating to water tightness.

7.6 Evaluate Service Life and Warranty Conditions

• Estimate expected service life of the sealant in the specific application.
• Check performance under accelerated aging tests or weathering tests.
• Confirm that durability aligns with overall building envelope design life.

7.7 Consider Installation and Maintenance Factors

• Assess the skill requirement for application; some chemistries require more experience.
• Check if the sealant is one-component or multi-component; multi-component systems often have shorter pot life but faster cure.
• Review cleaning methods, need for masking tapes, and allowable tooling times.
• Consider the maintenance strategy for replacement or over-sealing in the future.

8. Joint Design for Waterproof High Strength Sealants

Even the best waterproof high strength construction sealant will fail if the joint is poorly designed. Proper joint design is essential for long-term performance.

8.1 Joint Dimensions

• Joints must be wide enough to accommodate expected movement.
• Sealant depth must be controlled, often using the rule of:
  • Width ≥ 2 × depth for many elastomeric sealants, within recommended limits.
• Very thin joints are prone to tearing; overly thick joints may restrict movement and cure slowly.

8.2 Backer Rod and Bond Breaker Use

• Backer rod (compressible foam) is used to:
  • Control sealant depth
  • Prevent three-sided adhesion
  • Provide correct sealant geometry (optimal hourglass shape)
• Bond breaker tapes are used where backer rod cannot be installed, to avoid adhesion to the joint bottom.

8.3 Three-Sided Adhesion and Stress Concentration

• Sealant should bond to two sides only for proper movement and stress distribution.
• Bonding on three sides increases stress in the sealant, leading to premature failure.

8.4 Drainage and Water Management

• Design joints so that water does not accumulate unnecessarily at the sealant surface.
• For horizontal joints exposed to water, ensure proper slope and detailing.
• Combine waterproof high strength sealants with membranes, waterstops, and drainage systems as needed.

9. Common Applications of Waterproof High Strength Construction Sealants

Below are typical application areas where waterproof high strength construction sealants are critical.

9.1 Façade and Curtain Wall Joints

• Perimeter joints around windows and doors
• Panel joints in precast concrete façades
• Joints between cladding panels and structural frames

Key requirements:

• High UV and weather resistance
• Long-term flexibility and movement capability
• Compatibility with façade materials and coatings
• Excellent waterproof and airtight performance

9.2 Roofs and Balcony Edges

• Sealing between flashings and roof membranes
• Joints around roof penetrations and upstands
• Balcony edge joints and parapets

Key requirements:

• High UV and weathering resistance
• Compatibility with roofing systems
• Resistance to standing water (ponding) where unavoidable

9.3 Basements, Foundations, and Retaining Walls

• Construction joints and movement joints in below-grade structures
• Joints between concrete walls and slabs
• Interfaces with waterproofing membranes

Key requirements:

• Resistance to hydrostatic pressure and wet soil conditions
• Good adhesion to damp substrates, where allowed by specification
• Compatibility with waterstops, bentonite strips, and sheet membranes

9.4 Wet Rooms, Bathrooms, and Pools

• Joints around showers, bathtubs, and sanitary fixtures
• Tile joints and perimeter connections in wet rooms
• Pool edges and water feature joints

Key requirements:

• Waterproofing under intermittent or continuous water exposure
• Mold and mildew resistance
• Compatibility with ceramic tiles, stone, glass, and sanitary ware

9.5 Industrial and Trafficable Joints

• Warehouse floor joints
• Car park decks and ramps
• Loading bays and logistics centers

Key requirements:

• High mechanical strength and tear resistance
• Abrasion resistance and durability under repeated loading
• Resistance to oils, fuels, and industrial chemicals
• Waterproofing to protect sub-base and reinforcement

10. Installation Best Practices for Waterproof High Strength Sealants

Correct installation is essential to realize the full performance of any waterproof high strength construction sealant.

10.1 Surface Preparation

• Surfaces must be clean, sound, and dry (unless specific products allow damp application).
• Remove dust, loose particles, oil, grease, curing compounds, and old sealant residues.
• Use mechanical abrasion or appropriate cleaners when needed, following substrate guidelines.

10.2 Priming

• Some substrates require a primer to ensure durable adhesion.
• Follow product instructions regarding which substrates need priming and the correct primer type.
• Allow primer to dry for the specified time before applying the sealant.

10.3 Joint Filling and Tooling

• Insert backer rod to the correct depth and ensure it is continuous and not punctured.
• Apply sealant with a suitable gun, ensuring complete filling without air pockets.
• Tool the sealant to the correct profile, compacting it against the sides of the joint for optimal adhesion.
• Remove masking tapes immediately after tooling and before skin formation.

10.4 Curing Protection

• Protect freshly applied sealant from rain, dust, and early mechanical damage.
• Observe minimum curing times before:
  • Filling pools or water retaining structures
  • Allowing traffic on floor joints
  • Performing water testing on façades or roofs

11. Relevant Standards and Classifications

When selecting a waterproof high strength construction sealant, reference to standards and classifications provides confidence in performance.

• ISO 11600 – Classification and requirements for construction sealants based on movement capability and other properties.
• ASTM C920 – Standard specification for elastomeric joint sealants, including types, classes, and uses.
• EN 15651 – Sealants for non-structural use in joints in buildings and pedestrian walkways.
• ASTM C1247 and related tests – Evaluations of adhesion and durability under water immersion and environmental exposure.

Look for sealants that are classified under the appropriate categories for:

• Movement class (e.g. 25 LM, 25 HM, 50 LM, etc.)
• Intended use (e.g. façade, glazed, pedestrian walkways, sanitary)
• Water immersion and exterior weather exposure

12. Environmental and Health Considerations

Modern construction increasingly requires waterproof high strength sealants with low environmental impact.

• Low VOC content: Reduced emissions for indoor environments and green building certifications.
• Solvent-free formulations: Many hybrids and some polyurethanes avoid strong solvents.
• Non-hazardous isocyanate-free options: Available in some hybrid and silicone technologies.
• Compliance with indoor air quality standards: For use in residential and commercial interiors.

Verify certifications or labels relevant to your region, such as indoor air quality marks, environmental product declarations, or other eco-labels, which confirm low emissions and safer use.

13. Summary: Key Points for Selecting Waterproof High Strength Construction Sealants

• Understand the application: location, joint type, exposure to water, movement, and traffic.
• Match chemistry to needs: polyurethane, silicone, hybrid, or epoxy based on performance requirements.
• Check technical parameters: tensile strength, elongation, movement capability, hardness, and water resistance.
• Ensure compatibility: substrates, primers, backer rods, membranes, and coatings must work together.
• Design the joint properly: control dimensions, use backer rods and bond breakers, avoid three-sided adhesion.
• Follow installation best practices: proper surface preparation, priming, application, and curing protection.
• Verify standards and durability: refer to ISO, ASTM, and EN standards and confirm expected service life.
• Consider environmental aspects: select low VOC, solvent-free, or eco-labeled products where possible.

By following these guidelines, specifiers and contractors can reliably select and apply waterproof high strength construction sealants that deliver durable joint sealing performance, effective waterproofing, and long-term structural protection in a wide range of building and civil engineering applications.
